Proper lubrication is the life of every piece of mechanism. This is particularly true of the motor car. Correct lubrication spells the difference between long life or rapid and premature wear.
For this reason, a definite plan and schedule for application is necessary in order to provide the various bearing surfaces with the right amount of the correct lubricant at the proper intervals.
It is a well-known fact that one type of lubricant will not suffice for all applications. The degree of load carried and operating conditions make necessary the use of different types of lubricants.
In order to familiarize Hudson mechanics on the proper lubrications of the engine, chassis and body; lubricating charts indicating points to be lubricated, type of lubricant to be used and the frequency of application are shown in this Manual.
NOTE: Quality lubricants are used in the course of assembling every new car. These need not be changed until the recommended mieage period shown in the Lubricating Schedule.
Pressure lubrication to all engine bearings is maintained by a rotor type oil pump mounted on the right side of crankcase and driven by a worm gear on the camshaft. Oil is drawn by the suction side of the pump through a pipe connecting with a floating screen fixed in the pan.
The oil pump parts consist of an inner and outer rotor, a shaft and the body and cover. No adjustment of the pump is required. Oil pressure is regulated by a built-in, nonadjustable release valve and spring. These are accessible for inspection or cleaning through a plug opening at the left rear side of engine.
When the engine is started, the release valve has moved to a position that closes the oil passageway to the oil filter passageway and permits full pump flow direct through the main oil gallery, extending the full length of the crankcase. This oil gallery is intersected by drilled leads to all main and camshaft bearings and the valve tappets.
Through the drilled crankshaft, oil pressure from the main bearings is distributed to each connecting rod bearing. An angular hole drilled through the large end of each connecting rod and upper half of bearing shell deposits a uniform spray of oil on all cylinder walls.
Fitted in the front end of main oil gallery is an oil trough that conducts a small stream of oil to the timing chain and sprockets.
The oil measuring gauge seats on a tube pressed in the crankcase at the left rear side. A pressure type oil signal switch mounted above the oil pump and connected with the main oil gallery operates the dash oil signal light which shows red when the oil pressure drops below approximately 13 pounds.
Select oils from the well-known brands and of the proper viscosity to suit your seasonal and driving requirements.
The oil refiners or marketers supplying oils are responsible for the quality of their product and their reputation is the car owner's assurance of receiving high-grade lubricants.
It is most important that the oil should have the ability to flow at low temperatures to permit easy starting and at the same time, afford adequate lubrication when the engine is at normal operating temperatures. The oil selected should be based on its ability to perform these two functions at the lowest anticipated temperatures expected before the next oil change period. The following table will be helpful in making this selection.
|
| FOR | USE |
| 90° Average Temperature.... | S.A.E. 30 |
| 32° Minimum Temperature... | S.A.E. 20 |
| 10° Minimum Temperature... | 20W |
| -10° Minimum Temperature.. | 10W |
| Below -10° Temperature...... | 5W or 10W plus
10% Kerosene |
|
Your Authorized Hudson Dealer, who has had long experience with the brands of oil available in your locality, will be glad to help you with your lubrication problems. |
ENGINE OIL LEVEL - The level should be checked each time you purchase gasoline. The oil level gauge is located on the left side of the engine.
For normal operation, the oil level is satisfactory when it is within the "Oil Level Range." For high speed operation, the level should be maintained near the full mark. (Top line on the "Oil Level Range." Figure 3 [at right].
To make an accurate check, it is best to wait a minute or two after shutting off the engine to permit the oil to drain back into the reservoir (oil pan). Oil is added through the oil filler opening by removing the filler cap.
|
 |
WHEN TO CHANGE ENGINE OIL
The oil which is placed in the engine at the factory should be drained and replaced after the first 500 miles of operation.
Thereafter, at intervals of 2,000 miles the reservoir should be drained and refilled with new oil of good quality. If the car is operated constantly in dusty areas or for short distances at low speeds during cold weather, which permits foreign matter and sludge to accumulate, it should be changed more frequently. However, the actual change period is largely dependent on the individual driving circumstances.
NOTE: Darkening or discoloration of oil does not always mean that it is unsatisfactory. But evidence of dilution or dirt is good indication that the oil should be changed and the filter cartridge should be replaced.
CAUTION: The use of flushing oils or compounds is not recommended. However, in the event they are used, the oil reservoir should be thoroughly drained before installing new oil.
ENGINE OIL CAPACITIES - The total engine oil capacity is 5-½ quarts. When the oil is drained in the conventional manner, the refilling quantity is 5 quarts.
Approximately two quarts of oil are required to bring the level from the "Low" to "Full" mark.
BREAK-IN OIL - Should the use of so called "break-in" oils or special compounds for breaking in new engines be decided upon, make sure the supplier quarantees that they contain no harmful ingredients.
|
The lubricants placed in your car at the time of assembly are of the best quality and need not be changed until the recommended change period shown in the Lubrication Schedule has been reached.

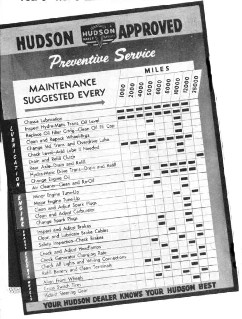

AT 500 MILES
Drain engine oil reservoir and refill with new oil of good quality. See "Engine Oil."
EVERY 1,000 MILES
|

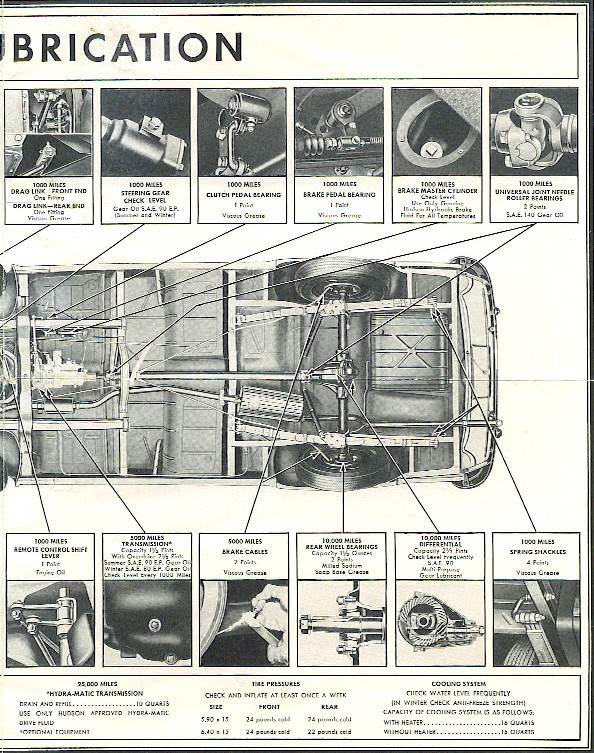

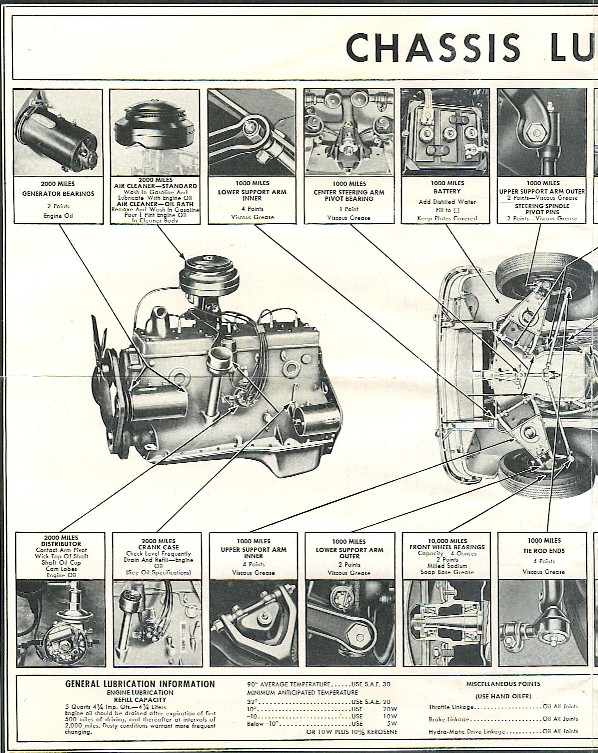

VISCOUS CHASSIS LUBRICANT
| ENGINE OIL |
Drag Link...................................................
Upper Support Arm Outer............................
Upper Support Arm Inner.............................
Lower Support Arm Outer............................
Lower Support Arm Inner.............................
Brake Pedal Bearing...................................
Center Steering Arm Pivot Bearing................
Tie Rod End...............................................
Steering Spindle Pivot Pins..........................
Clutch Pedal Bearing...................................
Rear Spring Shackle Bushing.......................
|
Points
2
2
4
2
4
1
1
4
2
1
4 |
Engine........................................................
Door Lock Push Button................................
Door Hinge.................................................
Door Striker Wedge.....................................
Fuel Tank Filler Door Hinge and Spring..........
Hood Hinge.................................................
Windshield Wiper Pulley..............................
Remote Control Shift Lever...........................
Rear Compartment Door Hinge.....................
|
Points
Check Level
4
8
1
4
2
4
1
2 |

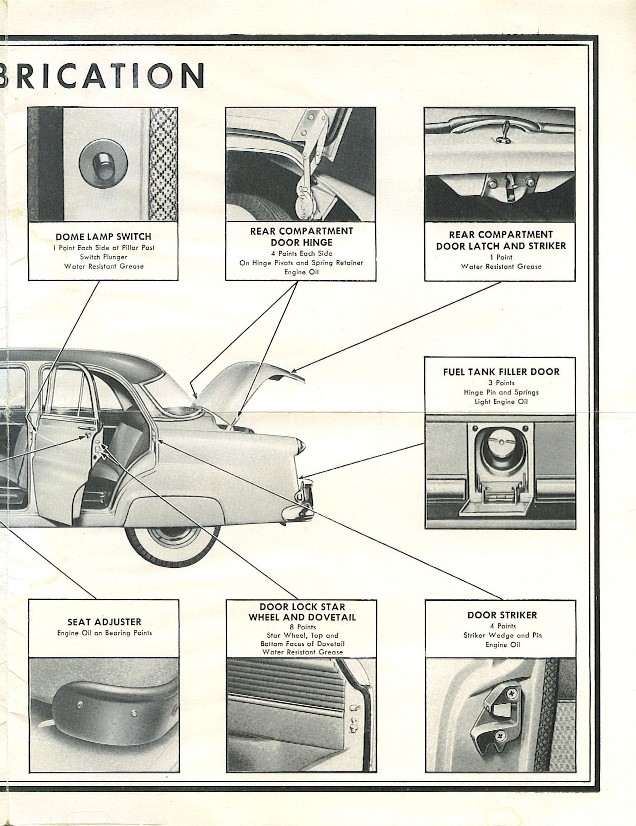

WATER RESISTANT LUBRICANT
| E.P. GEAR LUBRICANT
- S.A.E. 80 WINTER, S.A.E. 90 SUMMER |
Windshield Wiper Cables at Pulleys...............
Door Lock Star Wheel and Dovetail.................
Rear Compartment Door Latch and Strike........
Door Check Arm...........................................
Dome Light Switch........................................
Door Striker..................................................
Hood Upper Lock..........................................
Hood Lower Lock..........................................
|
Points
4
8
1
4
2
4
1
2
|
Transmission....................................................
Overdrive..........................................................
Steering Gear...................................................
|
Points
Check Level
Check Level
Check Level
|
HYDRA-MATIC DRIVE FLUID
|
Hydra-matic Drive Transmission.........................
|
Check Level
|
| GEAR OIL - S.A.E. 140 | MULTI-PURPOSE GEAR LUBRICANTS - S.A.E. 90
|
Universal Joint Need Rollers...........................
|
2
|
Rear Axle...............................................
|
Check Level
|
DISTILLED WATER
| WATER OR ANTI-FREEZE |
Check Battery Electrolyte Level and Gravity.
|
|
Check Coolant Level and Anti-Freeze Strength.
|
|
| HUDSON HYDRAULIC BRAKE FLUID |
|
|
Check Brake Master Cylinder Fluid Level.
|
|
| AT 2,000 MILES |
 |
Perform operations included in 1,000 mile lubrication, in addition to the following: ENGINE OIL
Engine - Drain Oil Reservoir and Refill. See "Engine Oil."
Generator.......2 Points
Distributor.......4 Points
Air Cleaner - Standard - Wash and Re-oil
Air Cleaner - Oil Bath - Remove, wash and add new oil.
Oil Filler Pipe Cap - Wash and Re-oil.
Throttle Operating Linkage.....All Joints
Brake Operating Linkage.......All Joints
|
AT 5,000 MILES
Perform operations included in 1,000 and 2,000 mile lubrications, in addition to the following:
Oil Filter.................................................................................Renew cartridge
|
E.P. LUBRICANT
- SAE. 80 WINTER, S.A.E. 90 SUMMER | VISCOUS CHASSIS LUBRICANT
|
Transmission.........................................Drain and Refill
Overdrive...............................................Drain and Refill
|
Brake Cables...............................Clean and Lubricate
|
AT 10,000 MILES
Perform operations included in 1,000, 2,000 mile and 5,000 lubrications, in addition to the following:
|
VISCOUS CHASSIS LUBRICANT
| MULTI-PURPOSE GEAR LUBRICANT - S.A.E. 90 |
If springs are equipped with metal covers use Viscous Chassis Lubricant using special lubricating clamp. If spring do not have metal covers, do not lubricate.
|
Rear Axle*...................Drain and Refill
Hydra-Matic Oil Level Indicator..........................Clean
*IMPORTANT: When checking the level of the lubricant in the rear axle and transmission, make sure that the lubricant has stopped foaming. If the car has been run for a considerable length of time, it should be permitted to stand long enough to allow the oil to reach the true level before checking.
|
SODIUM SOAP BASE LUBRICANT
Front Wheel Bearings...........Remove, Clean and Repack
Rear Wheel Bearings............Remove, Clean and Repack
|
AT 25,000 MILES
HYDRA-MATIC DRIVE FLUID
Hyrdra-Matic Drive Transmission......Drain and Refill
|
 |
 |
 |
 |
